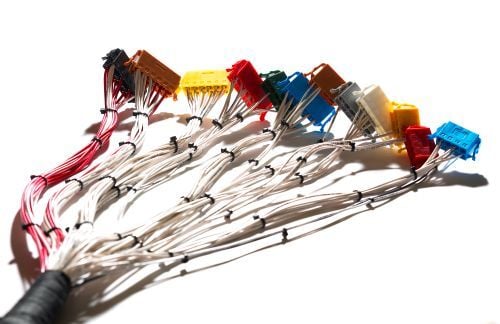

Wiring Harnesses for Control Panels and Industrial Equipment

Connect-2 Technology manufacture panel wiring harnesses, control looms and electro-mechanical assemblies, alongside harnesses for alarm and security equipment, battery connections and multi-conductor applications.

For control panel and switchgear manufacturers, the requirement goes beyond connecting the correct terminals. Harness dimensions, branch positions, connector orientation and identification also need to suit the equipment layout and installation process. These details are worth resolving before manufacture, particularly where space or access is limited.

Our role is to manufacture to your agreed requirements, whether the finished harness will be installed by your production team or incorporated into a larger assembly.

We support equipment manufacturers across sectors including renewable energy, power distribution, safety equipment and industrial engineering.

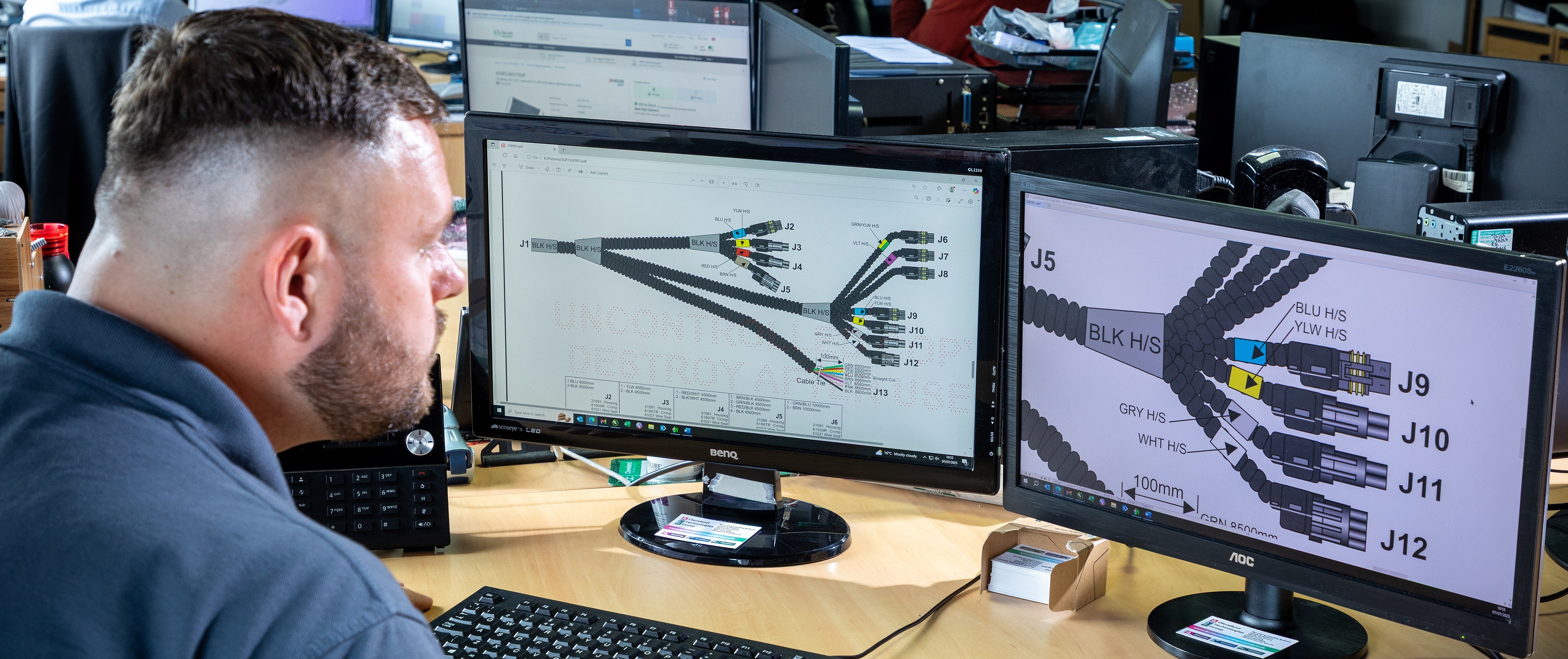

Engineering support with wiring harness drawings

Engineering Support for New and Existing Wiring Harnesses

Our in-house engineering team helps turn your wiring designs, drawings and prototypes into production-ready assemblies. We support both new product development and existing wiring harness requirements, working alongside your team to agree the details for manufacture.

From wire specifications and termination details to sleeving, identification and harness layout, we help establish a build specification suited to your equipment and assembly requirements. Harness boards and documented assembly instructions support consistent dimensions, routing and branch positions across repeat builds.

Whether you are introducing a new product, outsourcing assembly from your own workshop or transferring an existing harness from another supplier, our engineers provide practical support to help move your project into production.

Connect with us

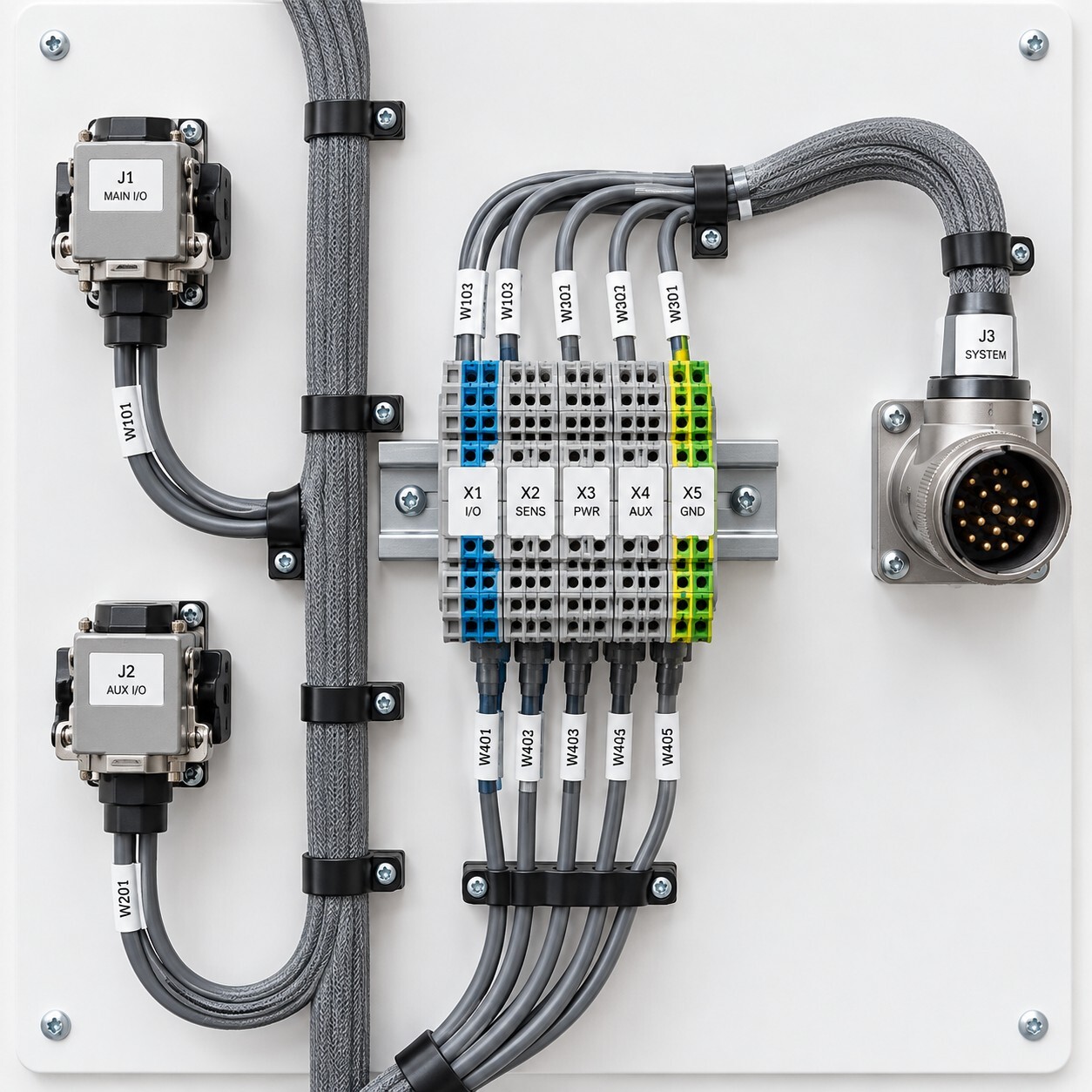

Point to point wiring harness

Sub-Assembly Integration and Panel Wiring

We can supply wiring harnesses as individual assemblies or integrate them with DIN rail assemblies, routed wiring, switches, indicators and panels.



For projects requiring more than a standalone loom, our wider capabilities include control panel wiring and electronic box build. This allows the wiring and associated components to be supplied at the stage of assembly your production process requires. The scope is agreed around your drawings, specifications and manufacturing needs.

Connect with us

Inspection and Testing to Agreed Requirements

Connect-2 Technology is ISO 9001:2015 certified, with a workforce trained to IPC/WHMA-A-620 requirements and supported by internal IPC trainers.

Our wiring harnesses and cable looms undergo in-process inspection and mechanical and electrical testing. Checks are defined around the assembly and customer specification, rather than assuming that every harness requires the same test programme.

Depending on the project, electrical testing can include continuity, insulation resistance and agreed functional checks. Testing methods and acceptance criteria should be discussed at quotation stage so the appropriate checks form part of the manufacturing requirement.

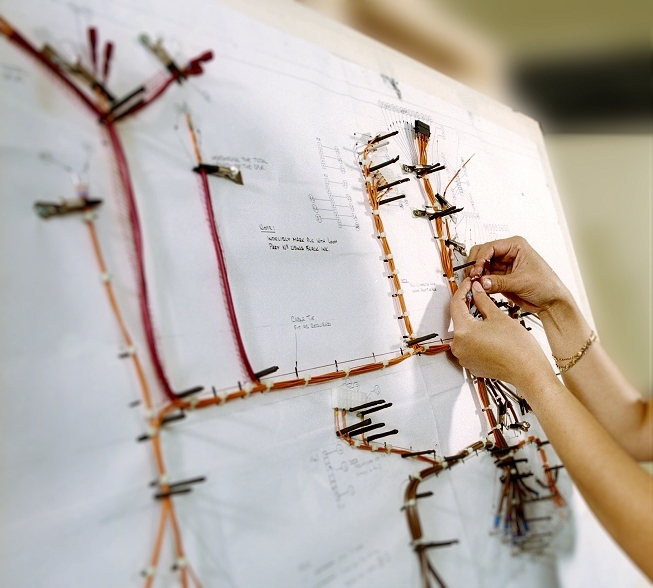

Wiring Harness Board

Low-Volume Builds and Ongoing Production

We support low-volume and higher-volume wiring harness manufacture, alongside prototype and development requirements. Production quantities and delivery arrangements are considered against the assembly specification, material availability and your required schedule.

We also offer customised labelling and packaging to suit your requirements. These details can be agreed alongside the harness specification, so the finished assemblies are identified and presented in the format your team needs.

Connect with us

Got Questions? We've Got Answers!

What information do you need to quote a wiring harness or wiring loom?

Please provide the latest drawing or sample, wire and connector specifications, finished dimensions, connection details, required quantities and delivery dates. Include any inspection, testing, identification and packaging requirements.

An indication of likely repeat demand is also helpful. Where some information is not yet available, our engineering team can review what you have and discuss the details needed to progress the enquiry.

What should be agreed before outsourcing wiring loom manufacture?

Agree the build specification, component sourcing responsibilities, inspection and testing requirements, delivery expectations and the process for approving changes.

Where drawings, samples or previous builds differ, establish which information takes precedence before production starts. It is also worth confirming how component substitutions and drawing revisions will be authorised. This gives both teams a shared basis for manufacturing and accepting the finished assemblies.

Can you supply wiring harnesses for renewable energy equipment?

Connect-2 Technology supports manufacturers in the renewable energy sector with cable and wiring assembly requirements. For a particular harness or loom, suitability depends on the specified materials, construction and testing requirements.

Share your drawings, wire and connector specifications, operating conditions and required quantities with your enquiry so we can review the manufacturing requirement.

How can wiring harness identification support equipment maintenance?

Specify wire identifiers and assembly references that correspond with the equipment documentation. This gives maintenance teams a consistent reference when tracing connections or identifying a replacement assembly.

For safety equipment and other products requiring servicing, consider identification and access requirements when defining the harness, not just during installation. Connect-2 Technology offers customised labelling that can be incorporated into the agreed assembly specification.
